1. Understanding the Ransomware Scenario

Ransomware malware typically encrypts part or all of the content of Oracle datafiles. Since Oracle datafiles are generally large (often tens to hundreds of gigabytes), encrypting the entire file takes considerable time. To avoid detection, many ransomware variants only encrypt the file header—usually the first few kilobytes or megabytes of each file.

Why Partial Encryption Creates an Opportunity

When ransomware encrypts only the file header, the actual data blocks containing your tables, indexes, and records remain intact. DBRECOVER can bypass the corrupted header and directly read these data blocks to extract your information.

Because the file header is damaged, Oracle cannot recognize the datafile—you'll see errors like ORA-01122 (database file failed verification check) or ORA-01110 (cannot open datafile). However, we can manually determine the critical metadata needed to recover the data:

  • Tablespace Number (TS#) — identifies which tablespace the file belongs to
  • Relative File Number (RFILE#) — identifies the file within its tablespace

2. Identifying Your Encrypted Files

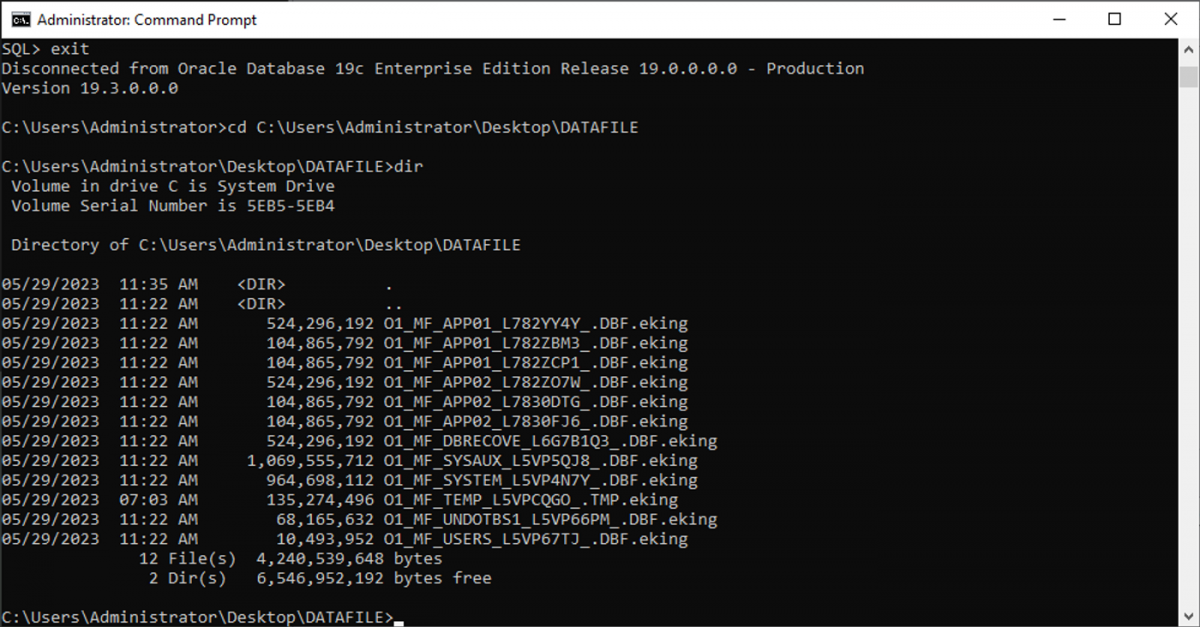

First, take inventory of your encrypted datafiles. Ransomware typically appends a custom extension to encrypted files. In this example, the files have been encrypted with the .eking suffix:

O1_MF_APP01_L782YY4Y_.DBF.eking O1_MF_APP01_L782ZBM3_.DBF.eking O1_MF_APP01_L782ZCP1_.DBF.eking O1_MF_APP02_L782ZO7W_.DBF.eking O1_MF_APP02_L7830DTG_.DBF.eking O1_MF_APP02_L7830FJ6_.DBF.eking O1_MF_DBRECOVE_L6G7B1Q3_.DBF.eking O1_MF_SYSAUX_L5VP5QJ8_.DBF.eking O1_MF_SYSTEM_L5VP4N7Y_.DBF.eking O1_MF_TEMP_L5VPCQGO_.TMP.eking O1_MF_UNDOTBS1_L5VP66PM_.DBF.eking O1_MF_USERS_L5VP67TJ_.DBF.eking
Files You Can Ignore

Not all files are needed for data recovery. You can safely ignore:

  • TEMP — temporary tablespace, contains no permanent data
  • UNDOTBS1 — undo tablespace, not needed for data extraction
  • SYSAUX — auxiliary system data, not required for user data recovery

3. Scanning SYSTEM Tablespace for Metadata

The key to recovering data from encrypted files is extracting the tablespace and file number mapping from the SYSTEM01.DBF file. Even if SYSTEM is partially encrypted, we can often still read the data dictionary base tables.

1 Launch DBRECOVER in Dictionary Mode

Start DBRECOVER and select DICT-MODE (Dictionary Mode). This mode allows you to load the data dictionary from the SYSTEM tablespace.

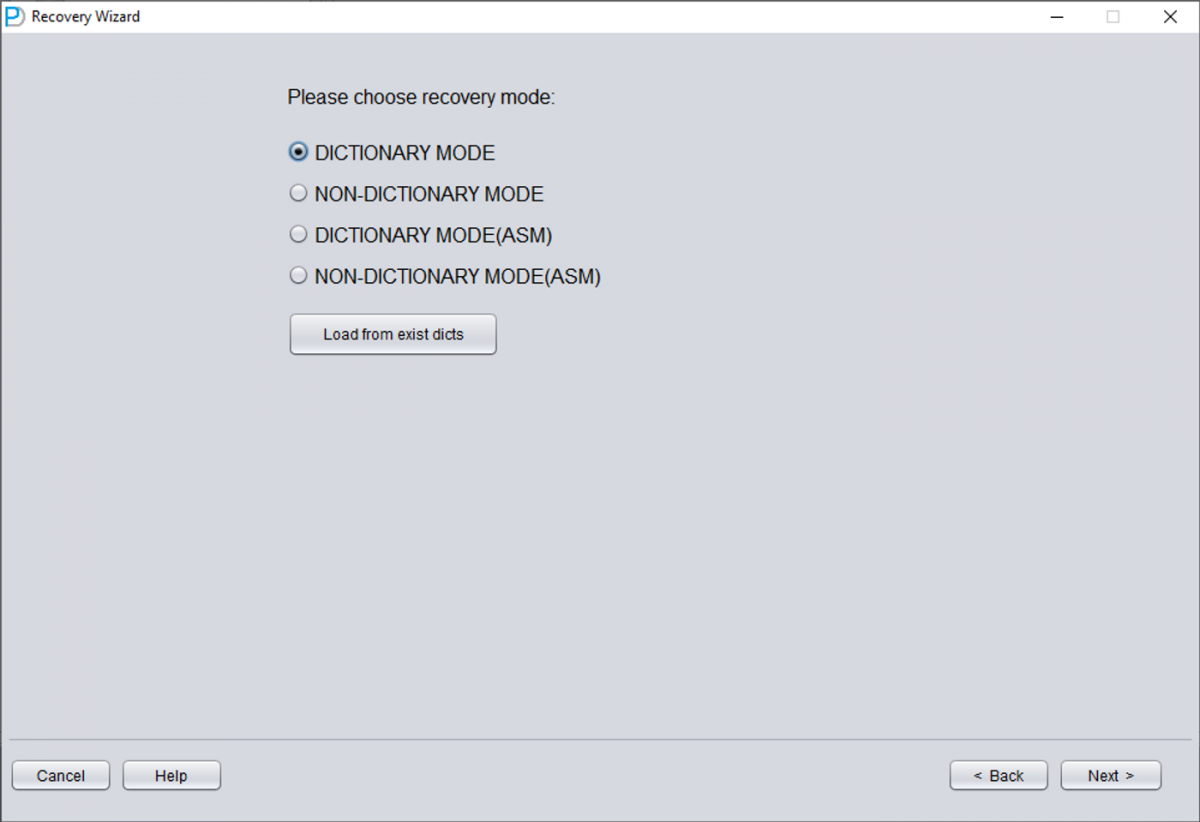

DBRECOVER initial screen showing mode selection
Select DICT-MODE to work with the data dictionary

2 Select the Correct Oracle Version

Choose the DB VERSION according to your database. For Oracle 12c, 18c, 19c, 21c, or 23ai, select version 12.

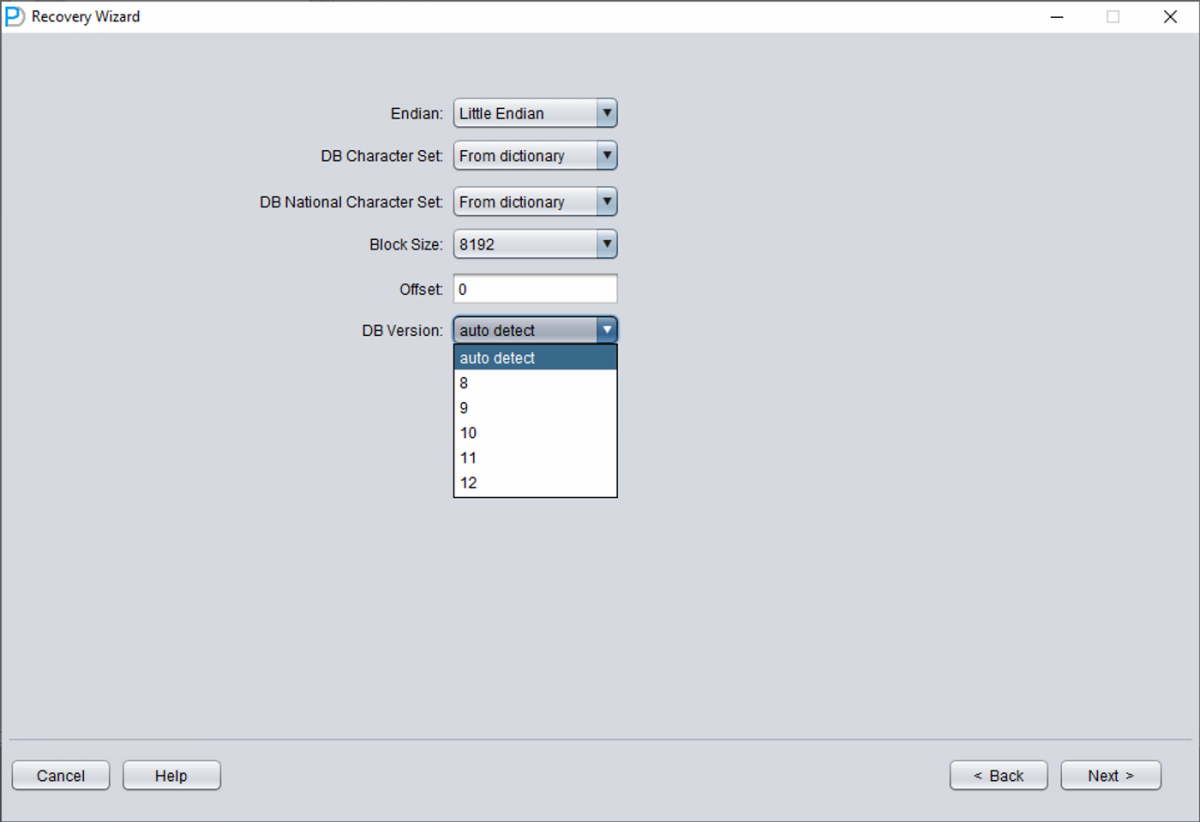

DBRECOVER version selection dialog
Select DB VERSION 12 for Oracle 12c and later versions

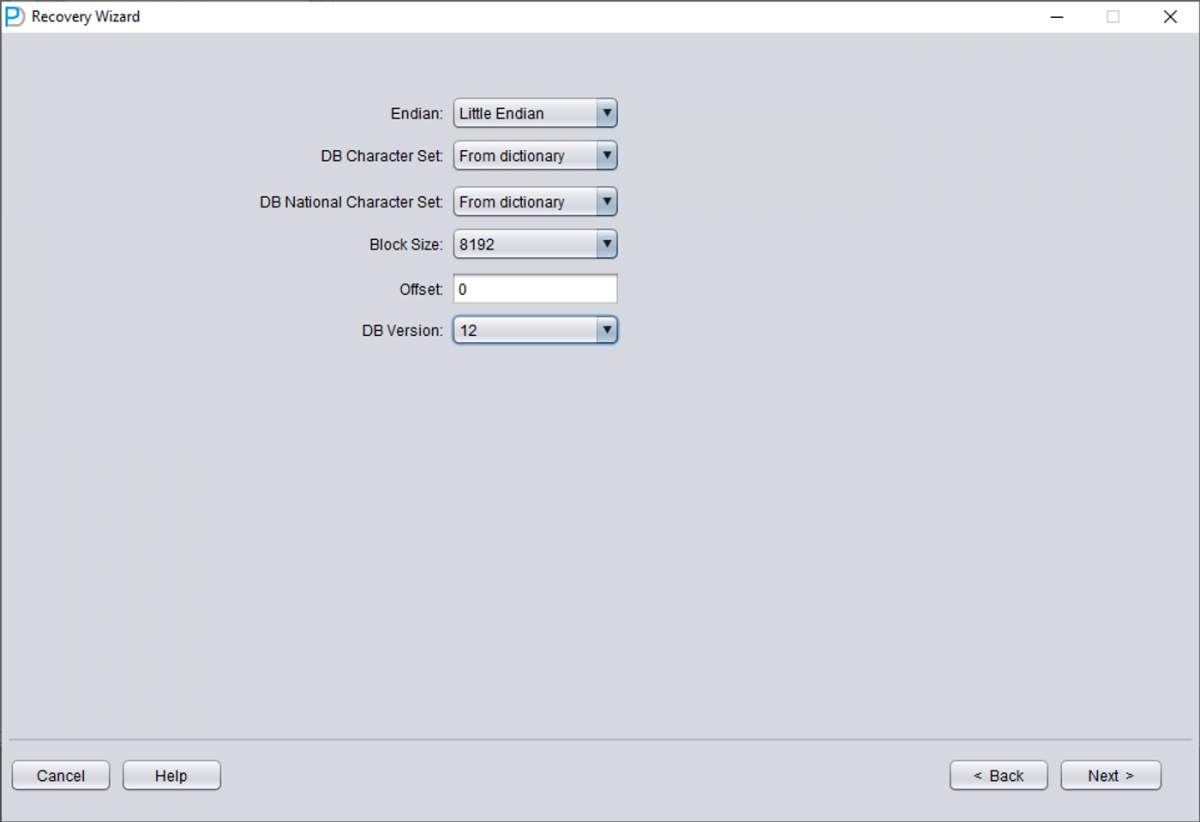

DBRECOVER configuration screen
Configuration options for dictionary mode

3 Add Only SYSTEM01.DBF Initially

At this stage, add only the SYSTEM01.DBF file. The SYSTEM tablespace always has fixed values:

  • TS# = 0 (tablespace number is always 0 for SYSTEM)
  • RFILE# = 1 (relative file number is always 1 for SYSTEM)
Adding SYSTEM01.DBF file with TS# and RFILE# values
Add SYSTEM01.DBF with TS#=0 and RFILE#=1

4 Enable SCAN BASE TABLES Option

Check the "SCAN BASE TABLES" option. This enables a more thorough scan that can handle damaged situations more effectively.

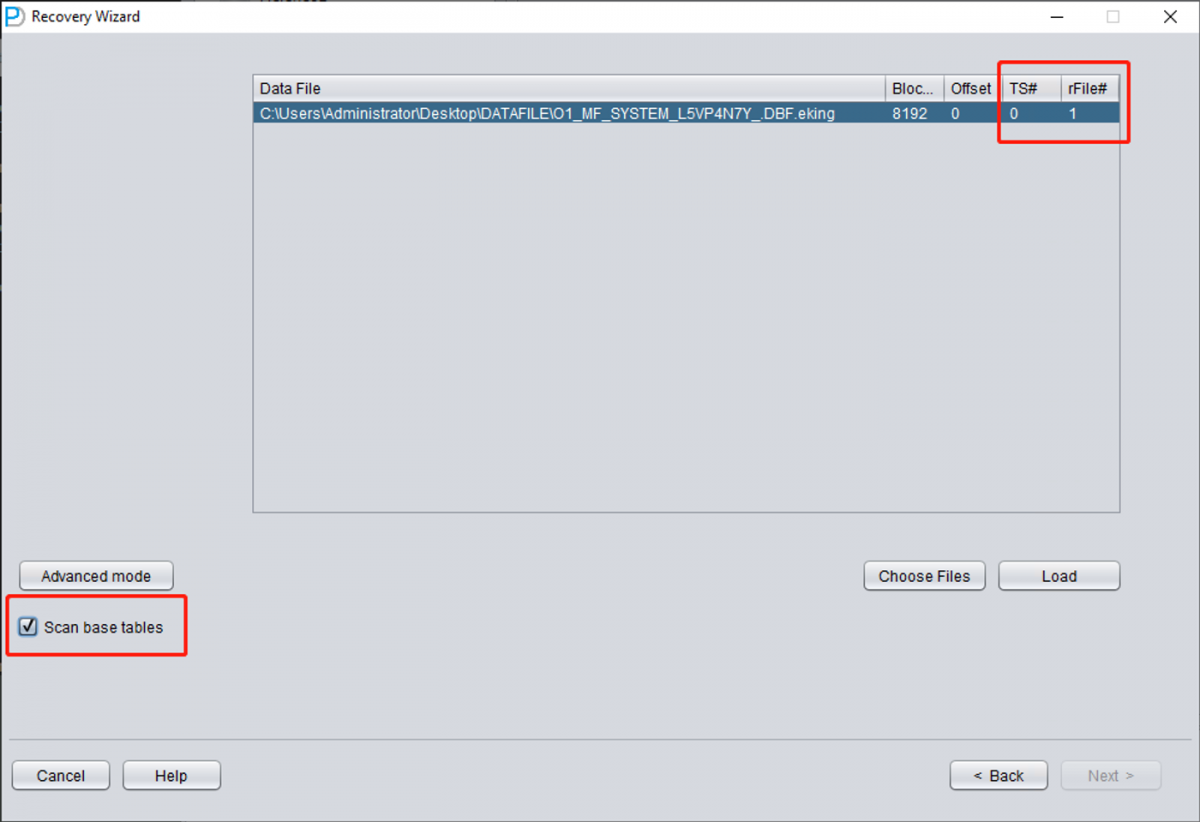

SCAN BASE TABLES option enabled
Enable SCAN BASE TABLES for better damage handling

5 Load and Scan

Click the LOAD button. DBRECOVER will scan SYSTEM01.DBF to find the data dictionary base tables.

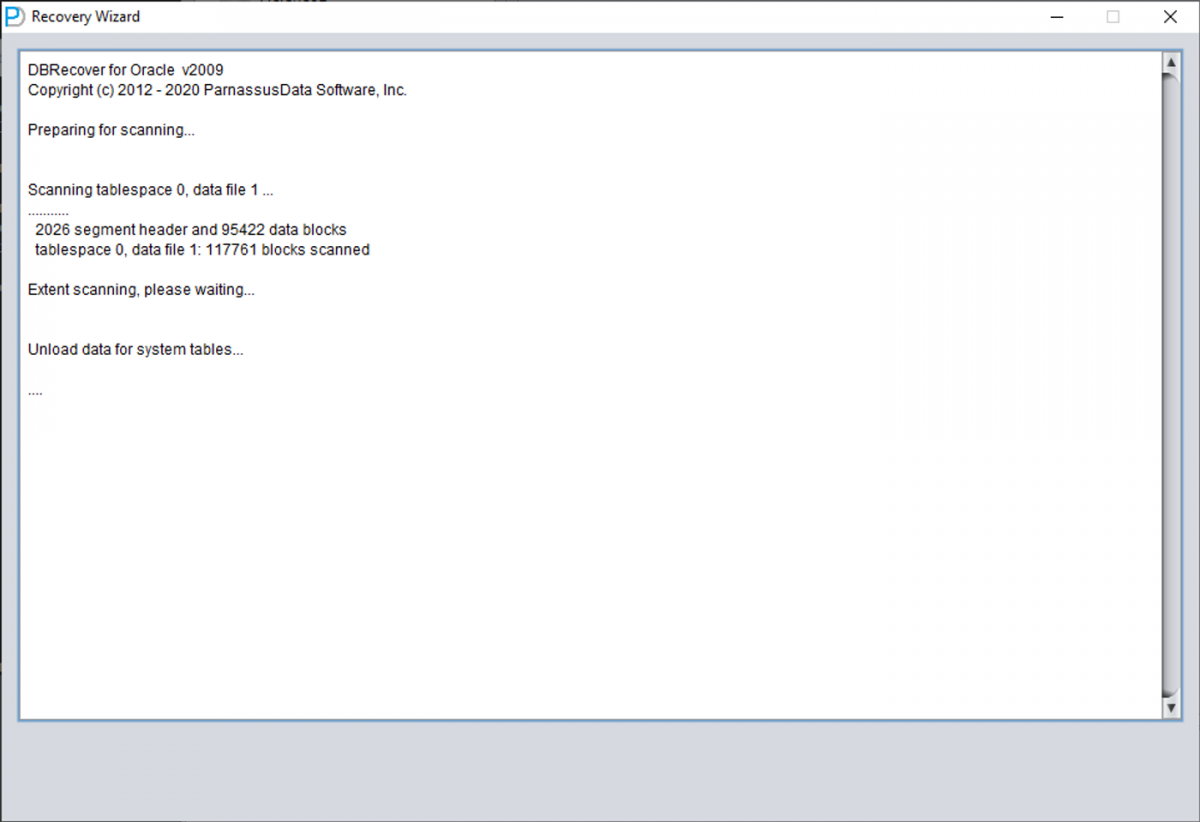

DBRECOVER scanning SYSTEM01.DBF
DBRECOVER scans and loads the data dictionary

4. Mapping Tablespaces to File Numbers

After loading the SYSTEM tablespace, expand the SYS user node in the tree view. Locate two critical base tables: TS$ and FILE$.

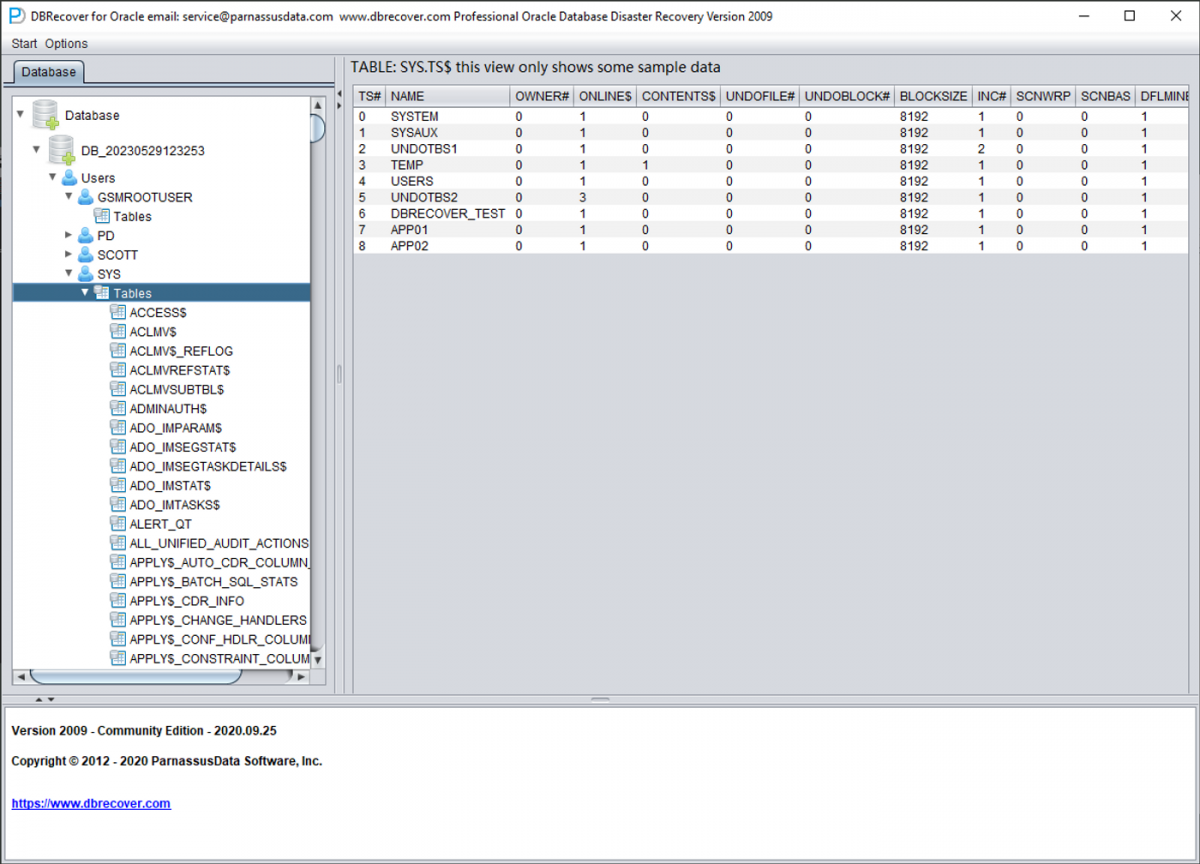

SYS schema with TS$ and FILE$ tables
Navigate to SYS schema to find TS$ and FILE$ tables

4.1 Reading the TS$ Table (Tablespace Information)

The TS$ table stores tablespace information. The TS# column contains the tablespace number, and the NAME column contains the tablespace name.

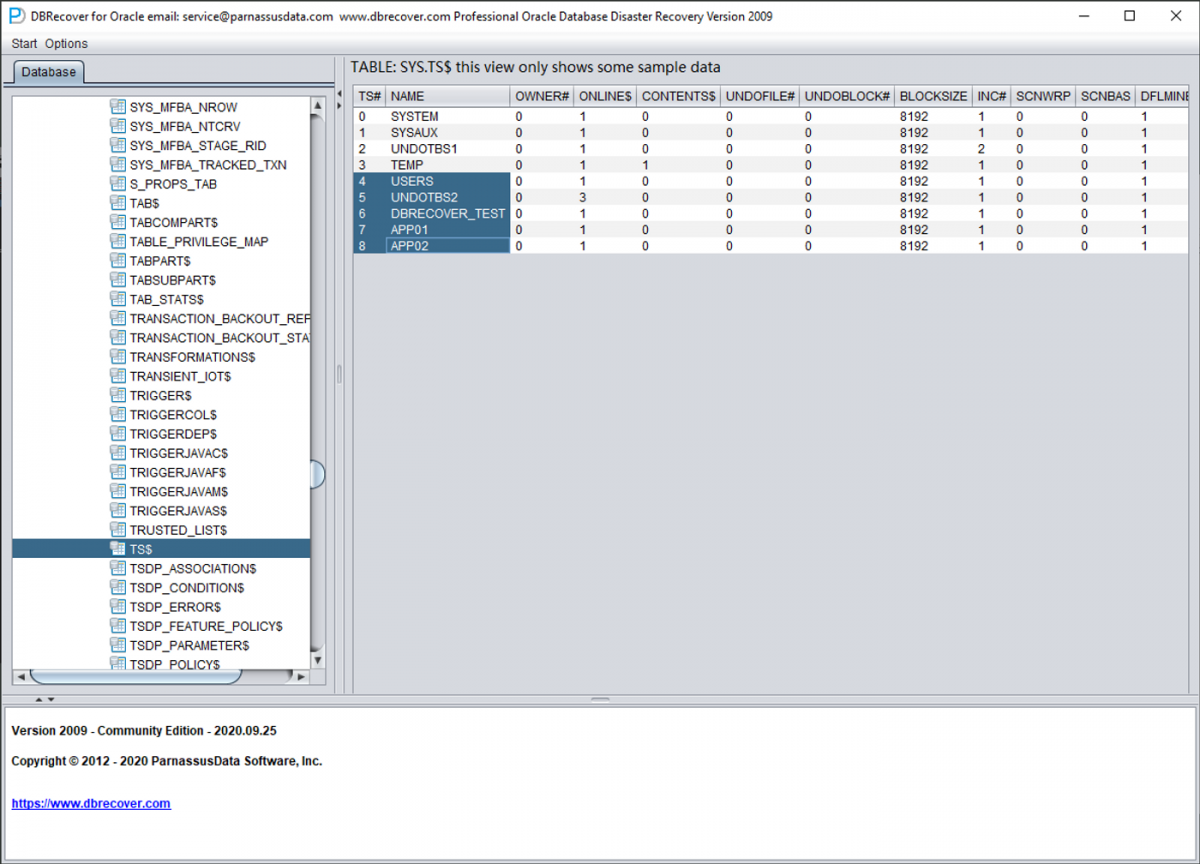

TS$ table showing tablespace numbers and names
TS$ table maps tablespace numbers to names

From TS$, we extract the tablespace mapping:

TS# Tablespace Name
0SYSTEM
1SYSAUX
2UNDOTBS1
3TEMP
4USERS
5UNDOTBS2
6DBRECOVER_TEST
7APP01
8APP02

4.2 Reading the FILE$ Table (File Information)

The FILE$ table stores datafile information. We need the TS# and RELFILE# columns.

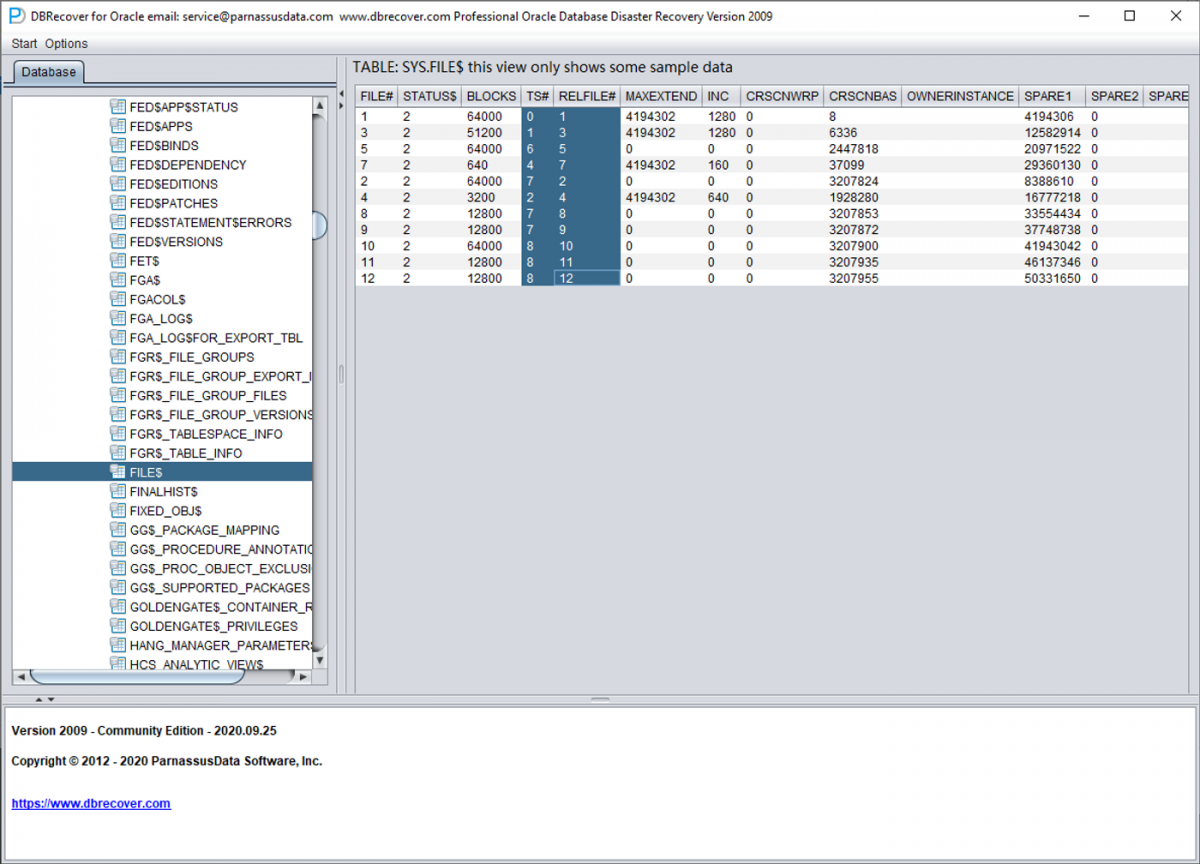

FILE$ table showing file numbers
FILE$ table maps tablespaces to relative file numbers

From FILE$, we extract the file mapping:

TS# RELFILE#
01
13
65
47
72
24
78
79
810
811
812

4.3 Creating the Complete Mapping

By combining data from TS$ and FILE$, and matching with the actual file names, we create the complete mapping needed for recovery:

TS# RFILE# Tablespace File Name
6 5 DBRECOVER_TEST O1_MF_DBRECOVE_L6G7B1Q3_.DBF.eking
4 7 USERS O1_MF_USERS_L5VP67TJ_.DBF.eking
7 2 APP01 O1_MF_APP01_L782YY4Y_.DBF.eking
7 8 APP01 O1_MF_APP01_L782ZBM3_.DBF.eking
7 9 APP01 O1_MF_APP01_L782ZCP1_.DBF.eking
8 10 APP02 O1_MF_APP02_L782ZO7W_.DBF.eking
8 11 APP02 O1_MF_APP02_L7830DTG_.DBF.eking
8 12 APP02 O1_MF_APP02_L7830FJ6_.DBF.eking
Understanding OMF File Name Order

For files managed by Oracle Managed Files (OMF), multiple datafiles within the same tablespace can be sorted alphabetically by their file names. The sorted order matches the RELFILE# order. For user-managed files, administrators typically use naming conventions like APP0101, APP0102, etc., which also naturally sort correctly.

5. Loading Files and Recovering Data

1 Reopen DBRECOVER with All Files

Close and reopen DBRECOVER. This time, add all necessary datafiles including SYSTEM01.DBF and all user tablespace files. Remember:

  • Skip TEMP, UNDOTBS1, and SYSAUX files
  • Always include SYSTEM01.DBF

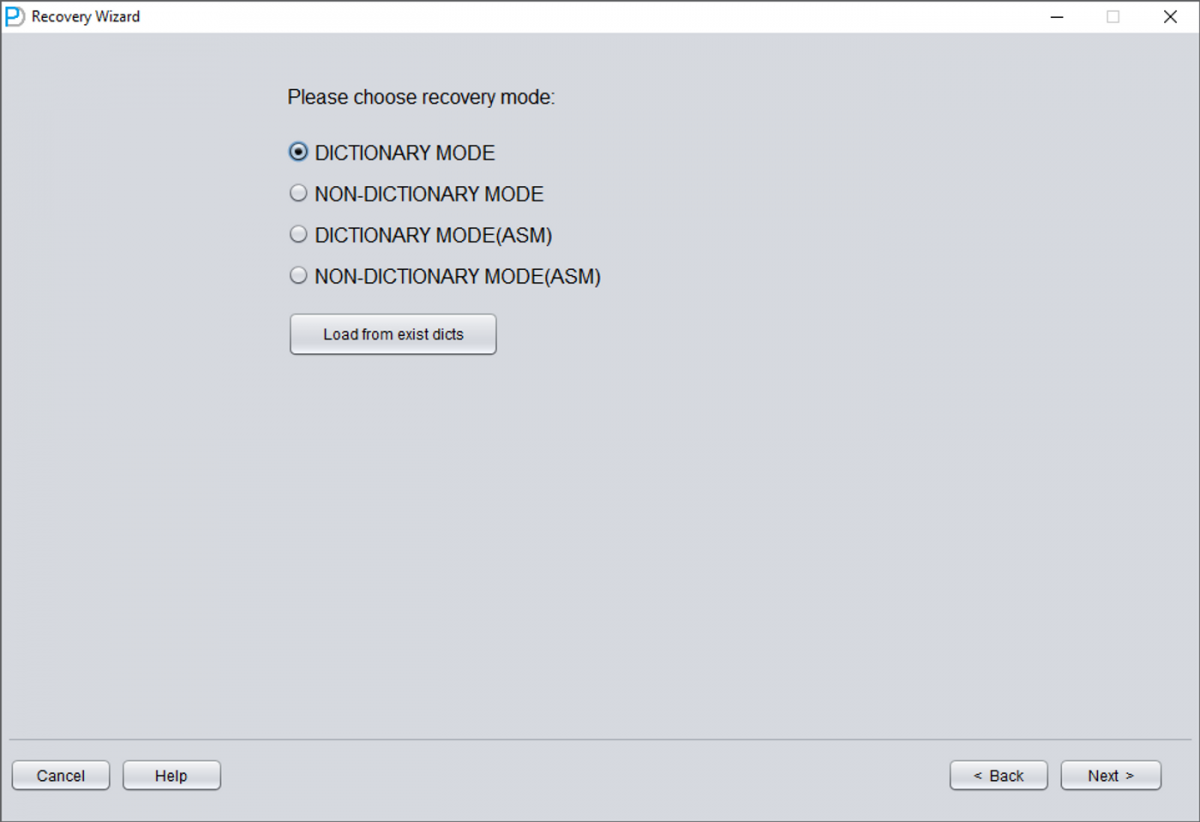

Reopening DBRECOVER in dictionary mode
Reopen DBRECOVER in Dictionary Mode

2 Select Database Version Again

Select the correct DB VERSION as before.

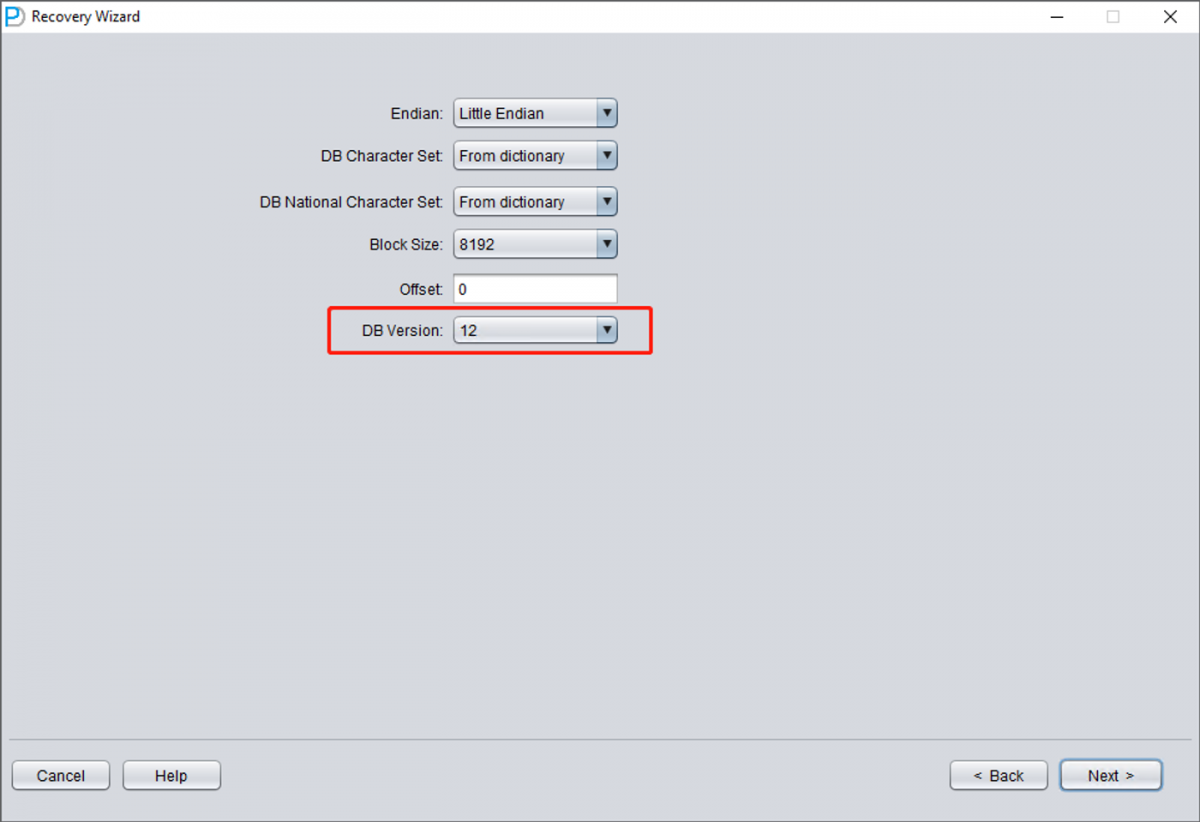

Selecting database version
Select DB VERSION (12 for Oracle 12c+)

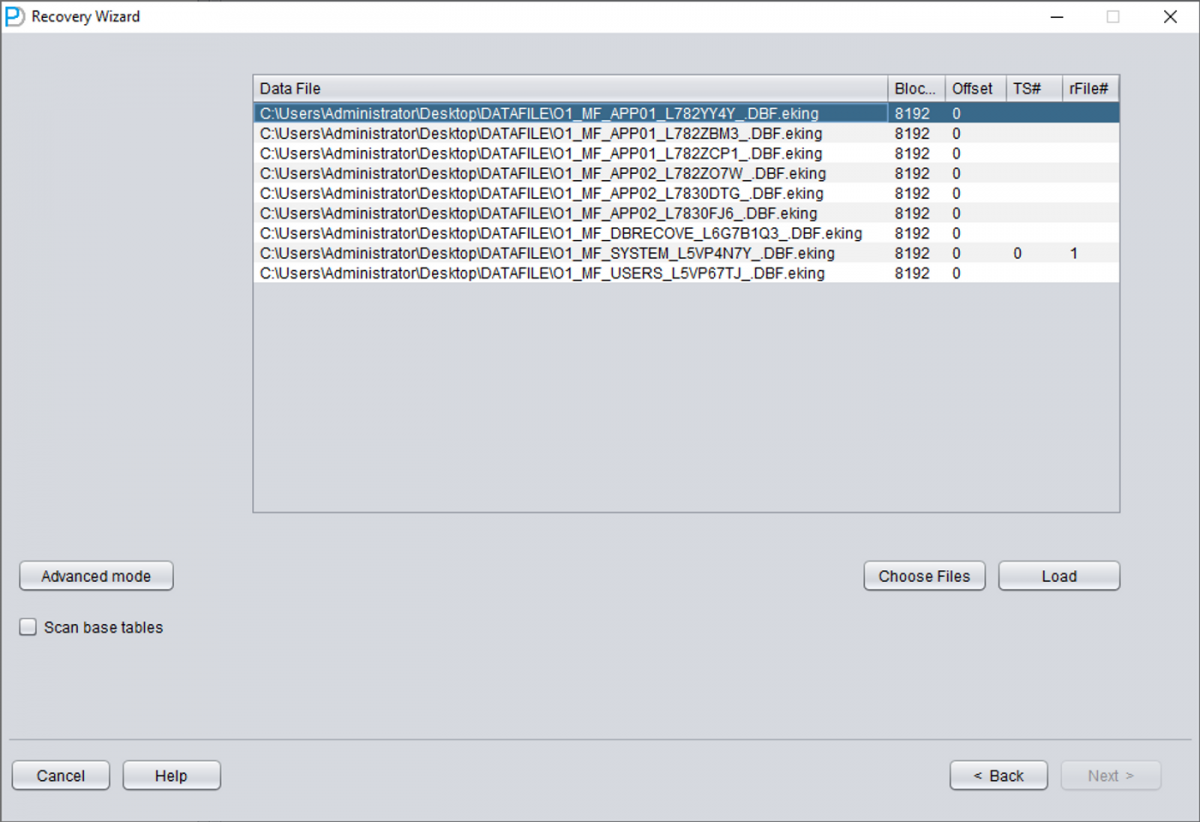

Configuration complete
Configuration ready for file loading

3 Enter TS# and RFILE# for Each File

Add each datafile and enter the correct TS# and RFILE# values from your mapping table.

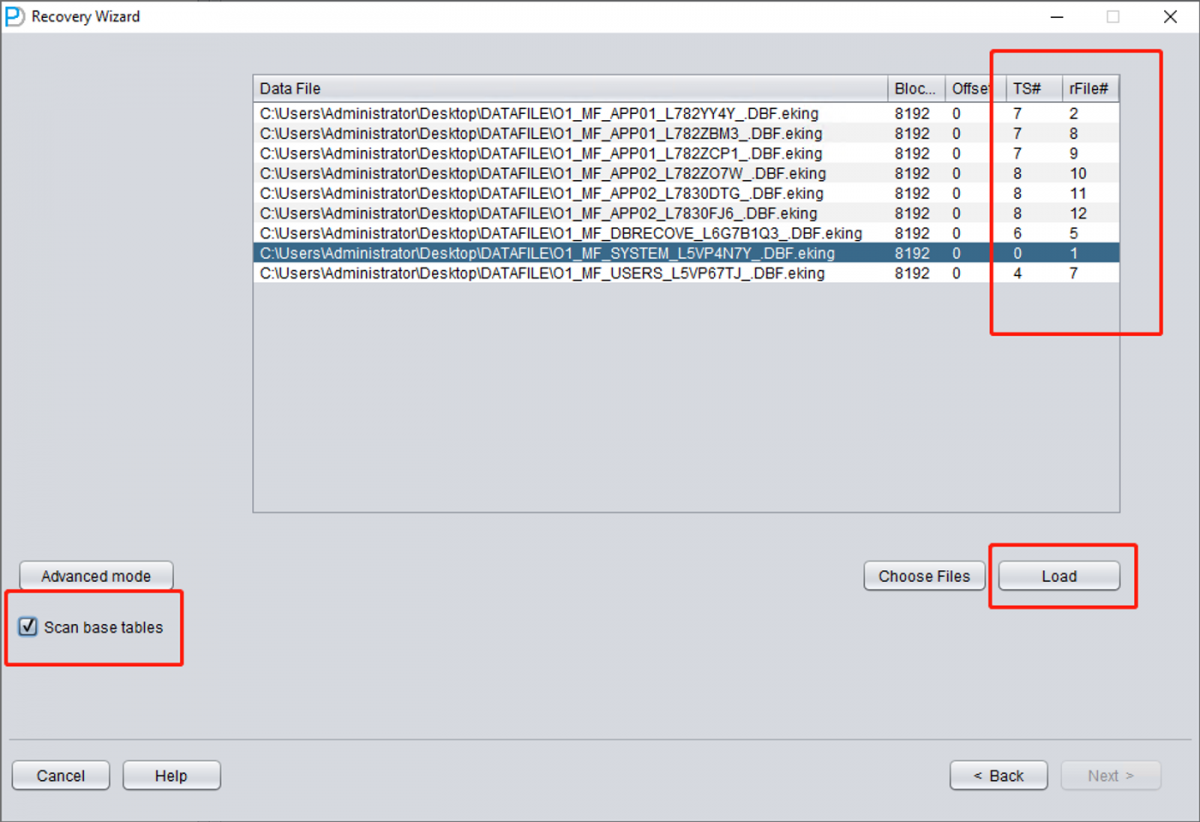

Entering TS# and RFILE# for each file
Enter TS# and RFILE# based on your mapping table

4 Extract Your Data

If the TS# and RFILE# information is correctly entered and the encryption damage isn't too extensive, you can now browse and extract your data!

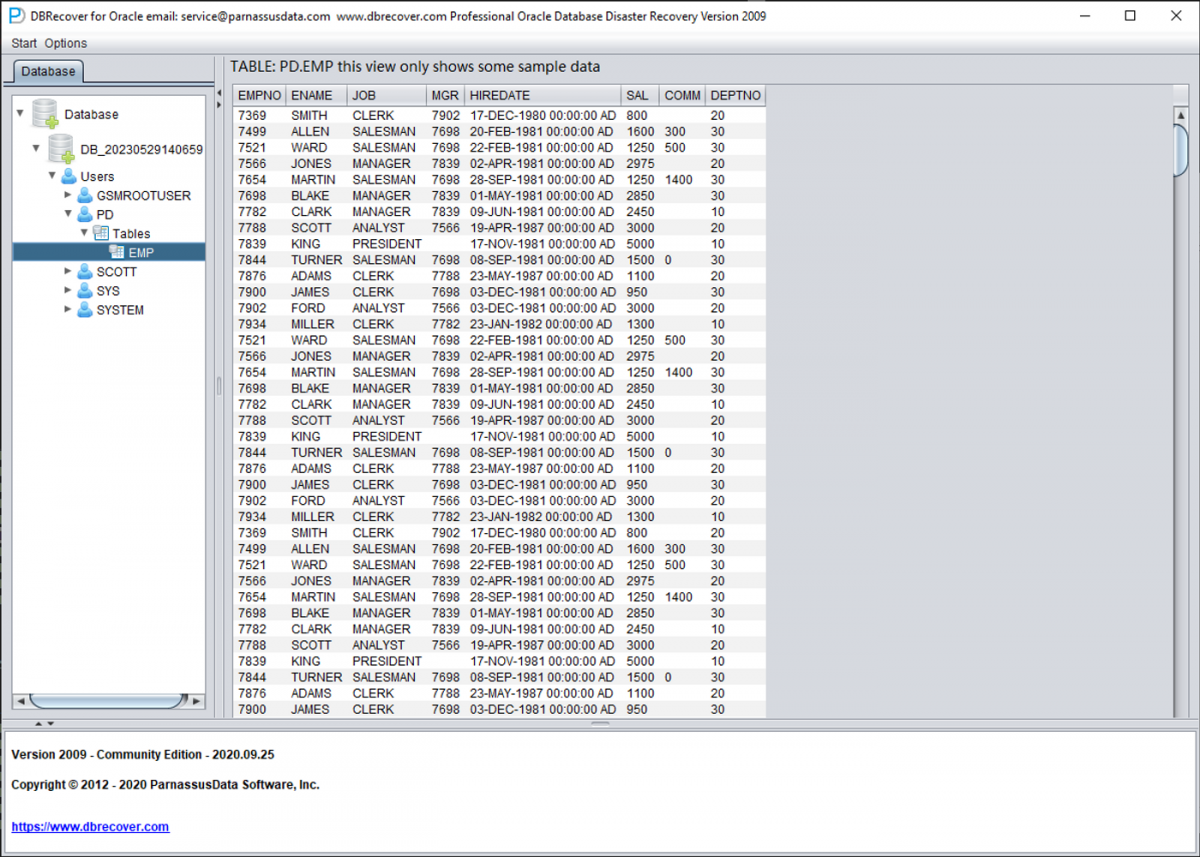

Successfully reading encrypted datafiles
Data successfully extracted from encrypted datafiles
Recovery Successful!

Once files are loaded correctly, you can browse schemas, preview table data, and export recovered data to SQL scripts, CSV files, or directly to a healthy Oracle database using DBRECOVER's DataBridge feature.

6. Next Steps and Support

Ransomware attacks vary significantly in their encryption patterns and severity. While this guide covers the standard recovery process, you may encounter additional challenges:

  • Heavy encryption that extends beyond the file header
  • ASM disk corruption requiring PRMSCAN module
  • Complex data types like LOBs, XMLType, or Spatial data
  • Character set issues with international data
Professional Support Available

Our team has extensive experience with ransomware recovery scenarios. If you encounter difficulties or have complex recovery requirements, please contact us immediately:

[email protected] — 24/7 Emergency Support
